Advantage
- Fast project cycle
- Quicker return on investment
- Functional versatility
- Ensured quality
- Low initial cost
- Column free large spans
Buildings Compements
S&G Metal Building Solutions India Pvt Ltd
Buildings Compements
S&G has developed strategic partnerships with complementary products and services providers to offer our clients complete building solutions. Some of the key partners of S&G are as below:

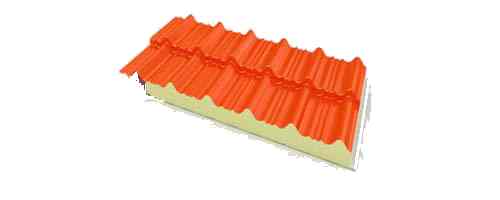

Sandwich PUF panels
S&G is the Key stockiest for Sintex PUF (Polyurethane Foam) panels in the state of Karnataka, India. Specially designed crown overlapping of the panel makes it 100% leak proof, high strength and maintenance free for decades.
Density of PU Foam
Tensile strength of PU Foam
Compressive strength (10% Deformation)
Thermal conductivity at 10Deg C
Temperature Range
Width
Thickness range
Length for retail
Length for projects
40 +/- 2 KG/ cu Mtr
4 KG/ Sq cm Mtr
2.1 KG/Sq cm
0.02 W/M Deg K
(-)80 Deg C to (+) 100 Deg C
1000 mm
20mm to 15mm
2.5m/ 3m/ 5m/ 6m
Any tailor made length upto 12 m
Aerocon Panels and blocks
Aerocon panels are inorganically boded sandwich panels made of two fiber reinforced cement sheets enclosing light weight insulation core composed of Portland cement, binders and a mix of siicaceous & micaceous material.
Advantage
- Light weight
- Resistant to water, fire, termites and rodents
- Withstands adverse weather
- Excellent thermal and acoustic insulation
- Re-locatable
- Durable

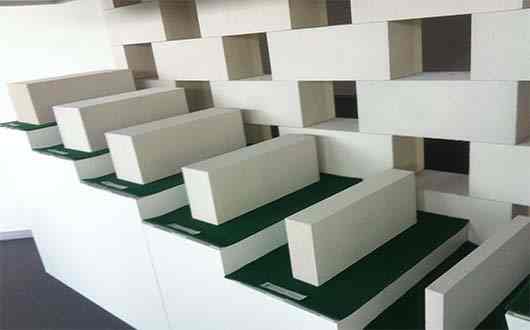

AAC Blocks Blocks
Autoclaved Aerated Concrete (AAC) blocks are an excellent substitute to clay bricks and concrete hollow blocks for construction of walls.
Advantage
- Better structural strength
- Better heat insulation
- Fire resistant
- Better sound insulation
- Cost effective
- Available in custom sizes
Property
Face Size L X H
Thickness
Dry weight
Compressive Strength
Normal dry density
Thermal conductivity
Sound reduction
Fire resistance
Unit
mm
mm
Kg
n/mm2
Kg/m2
w/m
db
hrs
Value
600 X 200
75, 100, 125, 150, 200, 230
5.25, 7, 8.75, 10.5, 14, 16.1
3
551 - 600
0.12
37-42
4
